8030b - 8030 - RT Screw Terminal 12 Circuit Dual Level Busbar

Egis Mobile

8030b - 8030 - RT Screw Terminal 12 Circuit Dual Level Busbar
8030b - 8030 - RT Screw Terminal 12 Circuit Dual Level Busbar
Load image into Gallery viewer, 8030b - 8030 - RT Screw Terminal 12 Circuit Dual Level Busbar
Load image into Gallery viewer, 8030b - 8030 - RT Screw Terminal 12 Circuit Dual Level Busbar

Regular price $14.80

Unit price per

only 0 left in stock

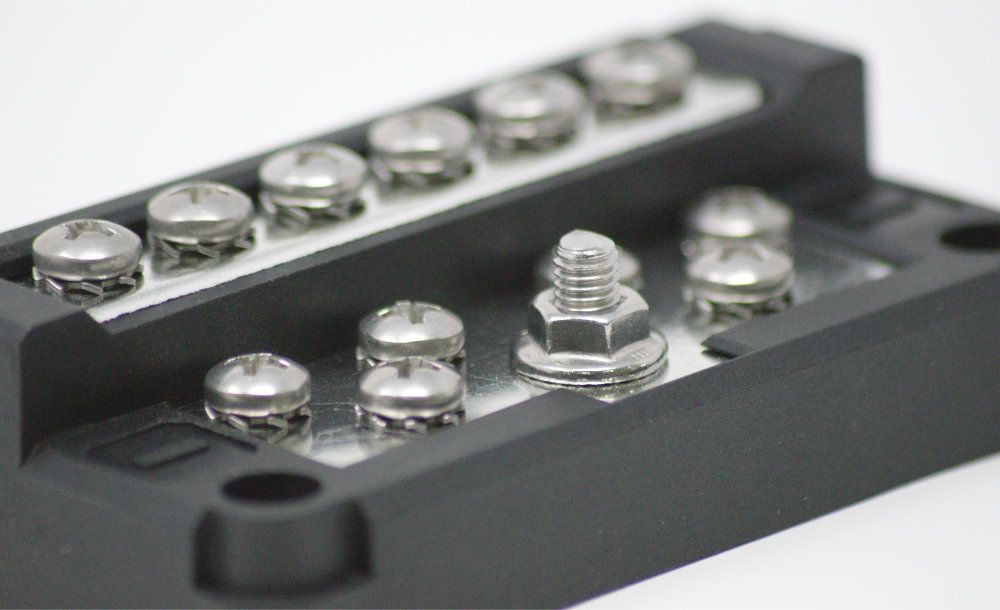

ROBUST MATERIALS FOR HARSH ENVIRONMENTS

All attachment hardware constructed of stainless steel with self-locking mechanisms for long lasting installations.  Plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering grade composite insulator supports high temperature application exposure such as engine compartments.

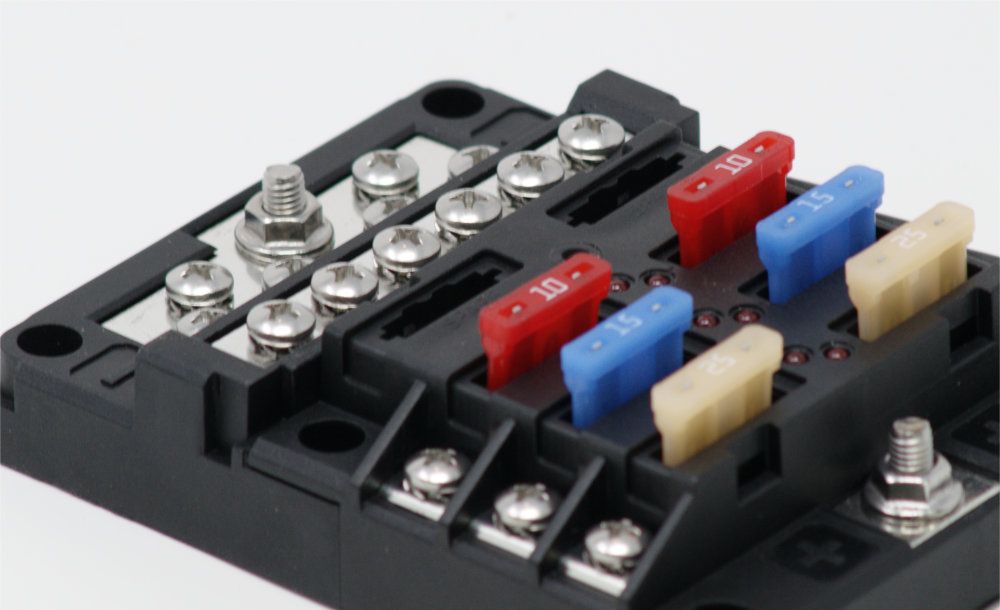

SEAMLESSLY INTEGRATES WITH RT FUSE BLOCKS

Can be installed individually on it's own, or assembled to the end of a 6, 12, or 18 position RT Series Fuse Block for a more compact overall footprint.

PRIMARY SPECIFICATIONS

MAXIMUM CURRENT - ENTIRE BLOCK

100 Amps DC

MAXIMUM CURRENT - PER SCREW

30 Amps DC

OPERATING VOLTAGE

12 or 24 V Systems,  0 to 36 Vdc

OUTPUT TERMINAL CONNECTION

Ring Terminals / M4 (#8)

NUMBER OF SCREW POSITIONS

Twelve (12)



Sales Sheet, Specification & Installation Information
